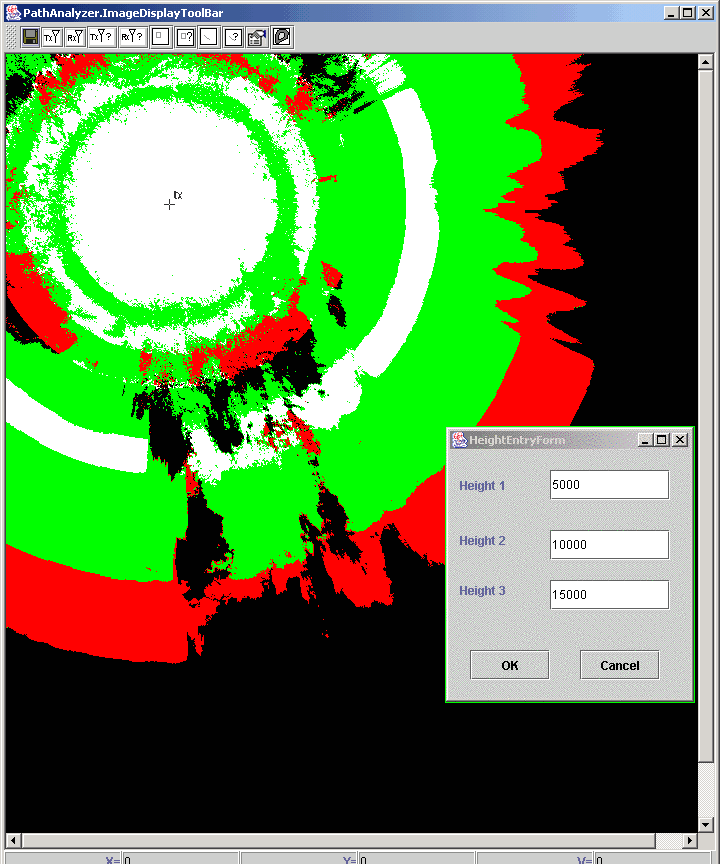

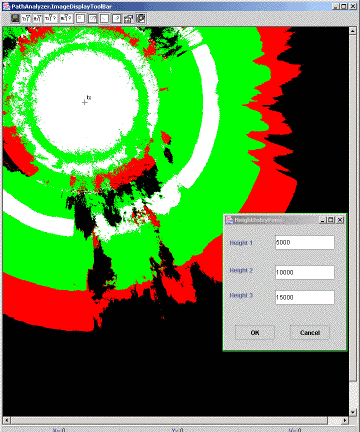

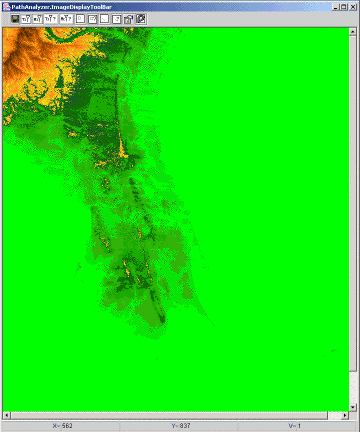

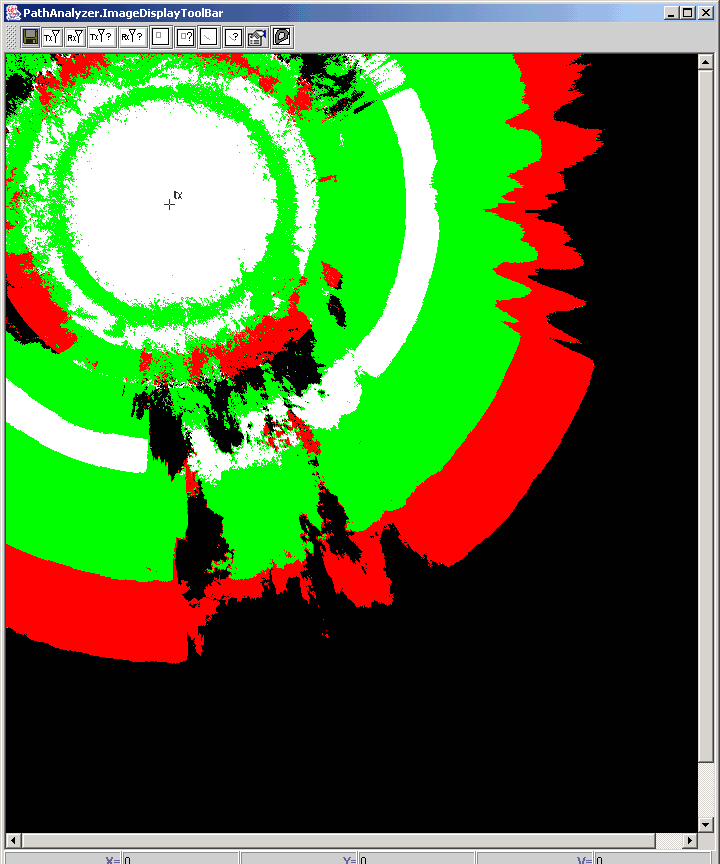

n this section the results of RF-PAIT height analysis are presented for Florida. This represents a large scale computation. In the following, the transmit antenna is show in the Florida area image. The transmit antenna heights are 5000m, 10000m and 15000m. The results are shown here. In the results white denotes areas where coverage is available for all three heights. Green is for areas covered by two heights. Red denotes areas covered by the largest height. Black is for areas which do not have coverage.

Note 1:
The coverge is based on a loss threshold of 146dB for illustration. The frequency is 150 MHz. As the system parameters such as transmit power, receiver sensitivity change the threshold will also change leading to greater or lesser coverage.

Note 2:
Grids and other information (including display in other units) can be added to the coverage maps as desired.
Click on images for main size.

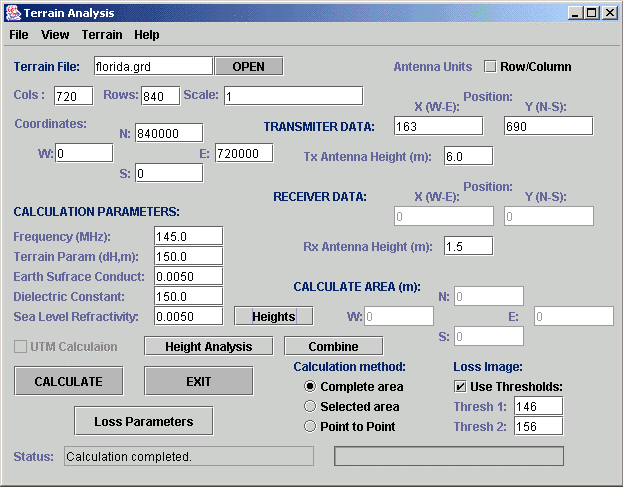

The main form with parameters.
